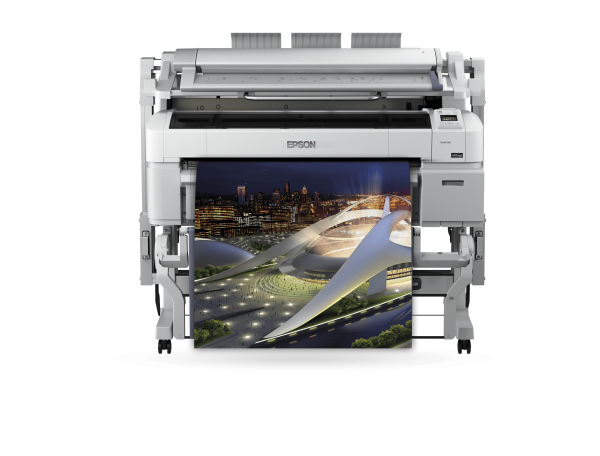

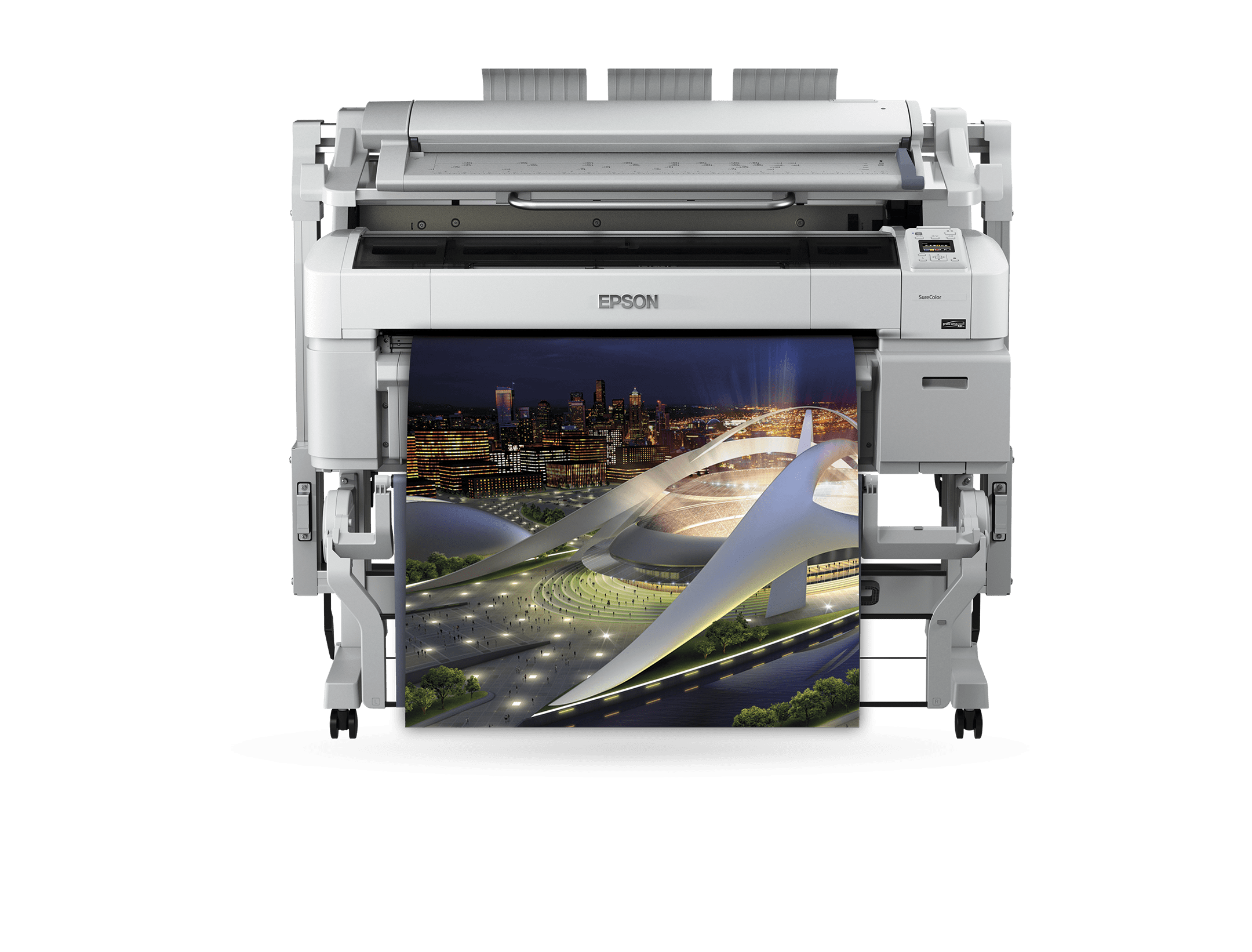

Epson SureColor SC-T5200 PS MFP

Hurry! Offer ends 29th February!

The SureColor SC-T5200 PS MFP maximises performance in busy graphics, CAD and GIS production environments. The integrated 36-inch scanner, large-capacity ink cartridges and fast print speeds meet the market’s need for maximum productivity and flexibility. Epson’s PrecisionCore TFP printheads do not need replacing and deliver the highest level of performance, value and versatile media support.

£5,440.26 inc. VAT: £6,528.31

Availability: In Stock

Part No.: C11CD67301A1

Finance

Company Finance from £116.67 (ex. VAT) per month. View more details

Initial Payment: £609.36

Monthly Payment: £479.36 x11

Total Payment: £5882.26

Initial Payment: £382.68

Monthly Payment: £252.68 x23

Total Payment: £6194.26

Initial Payment: £307.12

Monthly Payment: £177.12 x35

Total Payment: £6506.26

Initial Payment: £269.34

Monthly Payment: £139.34 x47

Total Payment: £6818.26

Initial Payment: £246.67

Monthly Payment: £116.67 x59

Total Payment: £7130.26

Select "Finance" as the payment option at checkout. Finance available for UK incorporated Limited Companies only. A minimum basket total of £1,000.00 applies

We use an independent finance company specialising in leasing equipment to the creative industry. Get in touch with us for more information as well as terms and conditions. Offer is subject to status. Terms and conditions apply. Written details available upon request.

Do you have a large format printer that you need replacing? Fill in our trade-in enquiry form with the details of your existing printer and we’ll come back to you with the best price for your old machine.

Description

Epson SC T5200 PS MFP

The Epson SureColor SC-T5200 PS MFP maximises performance in busy graphics, CAD and GIS production environments. The integrated 36-inch scanner, large-capacity ink cartridges and fast print speeds meet the market's need for maximum productivity and flexibility. Epson's PrecisionCore TFP printheads do not need replacing and deliver the highest level of performance, value and versatile media support.

DPSB sells a wide range of Epson printers.

Ideal for graphics, CAD and GIS

The SureColor SC-T5200 PS MFP is one of the SureColor SC-T series of high-speed, four-colour large-format printers. However, it's designed to produce a wide range of high-quality display graphics. In other words, it's perfect for many environments including CAD and GIS applications in design, commercial print, copy shop, architecture, building, engineering, retail and education environments.

Highly productive

To maximise productivity it features large-capacity ink cartridges and high-speed scanning and printing. With the versatile, integrated 36-inch scanner you can easily digitise large-format copies during use (from tracing paper to 1.3mm board) and scan-to-file, scan-to-email or scan-to-share with other SC-T printers.

Fast

Above all, it features 1GB of RAM for ultra-fast image processing and an optional 320GB HDD for job caching and recall. Likewise, optional PostScript support with dual 1.6GHz CPUs. Therefore, enabling the printing of large data-rich files quickly and directly from leading design and CAD programs.

High-quality output

Firstly, the Epson SC T5200 utilises the combination of Epson’s PrecisionCore TFP printheads and UltraChrome XD pigment ink delivers industry-leading output quality and precise, repeatable performance. Secondly, UltraChrome XD pigment ink is smudge and water-resistant and delivers deep blacks and crisp, dense lines ideal for technical graphics. And lastly, the vibrant colours necessary for high-quality prints and posters, on coated and non-coated media including board up to 1.5mm thick.

Key Features

  • Fast processing: High-speed scanning and printing of graphics, CAD and GIS applications
  • Integrated 36-inch scanner: Digitise hand-drawn, hand-annotated and hard-copy images
  • PrecisionCore TFP printhead: Permanent printheads for the duration of printer lifetime
  • UltraChrome XD inks: Produce quality, vibrant, smudge- and water-resistant images
  • PostScript support with 2 x 1.6GHz CPUs: Print multiple formats, including data-rich files, quickly and directly
Technology
Printing Method PrecisionCore TFP print head
All-in-One Functions Print, Scan, Copy
Ink Technology Ultrachrome® XD aqueous pigment ink
Print
Colours Photo Black [Pigment], Matte Black [Pigment], Cyan [Pigment], Yellow [Pigment], Magenta [Pigment]
Colours Capacity Photo Black [110ml, 350ml, 700ml], Matte Black [110ml, 350ml, 700ml], Cyan [110ml, 350ml, 700ml], Yellow [110ml, 350ml, 700ml], Magenta [110ml, 350ml, 700ml]
Minimum Droplet Size 3.5 pl, With Variable-Sized Droplet Technology
Minimum line width 0.02 mm
Line accuracy +/- 0.26
Print from PC, MAC
Nozzle Configuration 720 Nozzles Black, 720 Nozzles per Color
Printing Resolution 2,880 x 1,440 DPI
Paper / Media Handling
Paper Formats A0 (84.1×118.9cm), A1 (59.4×84.1cm), A2 (42.0×59.4cm), A2+, A3+, A3 (29.7×42.0 cm), A4 (21.0×29.7 cm), 17 ” (43.2 cm) Roll, 24 ” (61.0 cm) Roll, 36 ” (91.4 cm) Roll, B2 (51.4×72.8 cm), B3 (36.4cmx51.4 cm), B4 (25.7×36.4 cm)
Print Margins Sheet Media Mode 1: 3 mm (top), 3 mm (right), 14 mm (bottom), 3 mm (left)
Compatible Paper Thickness 0.08 mm – 1.5 mm
Duplex No
Borderless printing on 10 inches, 11.81 inches, 12.95 inches, 15.98 inches, 17.01 inches, 20.28 inches, 23.39 inches, 24.02 inches, 28.66 inches, 33.11 inches, 35.98 inches
General
Power consumption 60 Watt, 3 Watt (standby), 0.5 Watt (Power off)
Supply Voltage AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions 1,539‎ x 912 x 1,647 mm (Width x Depth x Height)
Product weight 138 kg
Sound Power Operation: 6.8 B (A)
Noise Level Operation (Roll): 50 dB (A) Standby: 31 dB (A)
What’s in the box Driver and utilities (CD), Individual Ink Cartridges, Maintenance box, Setup guide, SureColor T-Series Printer, User manual (CD), Warranty document
Optional extras Attachment for Auto Take up reel unit, Document carrier sheet A0, Roll adapter, Cover Plus warranty extensions
Other Features
Memory Printer: 1 GB
Compatible Operating Systems Mac OS 10.5.8 or later, Windows 10, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64
Emulations HP-GL2, RTL, Adobe® Postscript 3®, ESC/P-R
Features Direct scan-to-print without PC
Interfaces USB – compatible with USB 2.0 specification, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T)
Security IEE 802, HTTPs
Media Handling Auto cutter, Borderless print, Roll Paper, Thick Media Support
LCD and Memory Cards
Panel Type: Color, Diagonal: 6.8 cm
Scan
Maximum Precision OR +/- 0.1 % of vector length (whichever is greater)
Output formats JPEG, TIFF, PDF
Scanner type Contact image sensor (CIS)
Light Source RGB LED
Media width 38″ (153mm to 965.2mm)
Scan width 36″ (153mm to 914.4mm)
Scanning Speed 13.3 inch/sec ( Monochrome, 200 dpi; 6 inch/sec ( Colour, 200 dpi;
Maximum scan length 30.5 m
Name Epson SureColor SC-T5200 PS MFP
SKU C11CD67301A1
Specification No
Manufacturer Epson
EAN 8.72E+12
