HP DesignJet Studio Steel Large Format up to A0 Plotter Printer - 36", with Mobile Printing

We won't be Beaten on Price!

With a design that performs and technology that stands out in the first net carbon neutral HP DesignJet plotter printer.These are world’s easiest large-format plotters that fit the way architects live and work and print multi-size projects automatically.

£1,849.00 inc. VAT: £2,218.80

Availability: Call or Chat for availability

Part No.: 5HB14C

Finance

Company Finance from £38.82 (ex. VAT) per month. View more details

Initial Payment: £292.08

Monthly Payment: £162.08 x11

Total Payment: £2075

Initial Payment: £215.04

Monthly Payment: £85.04 x23

Total Payment: £2171

Initial Payment: £189.36

Monthly Payment: £59.36 x35

Total Payment: £2267

Initial Payment: £176.52

Monthly Payment: £46.52 x47

Total Payment: £2363

Initial Payment: £168.82

Monthly Payment: £38.82 x59

Total Payment: £2459

Select "Finance" as the payment option at checkout. Finance available for UK incorporated Limited Companies only. A minimum basket total of £1,000.00 applies

We use an independent finance company specialising in leasing equipment to the creative industry. Get in touch with us for more information as well as terms and conditions. Offer is subject to status. Terms and conditions apply. Written details available upon request.

Do you have a large format printer that you need replacing? Fill in our trade-in enquiry form with the details of your existing printer and we’ll come back to you with the best price for your old machine.

Description

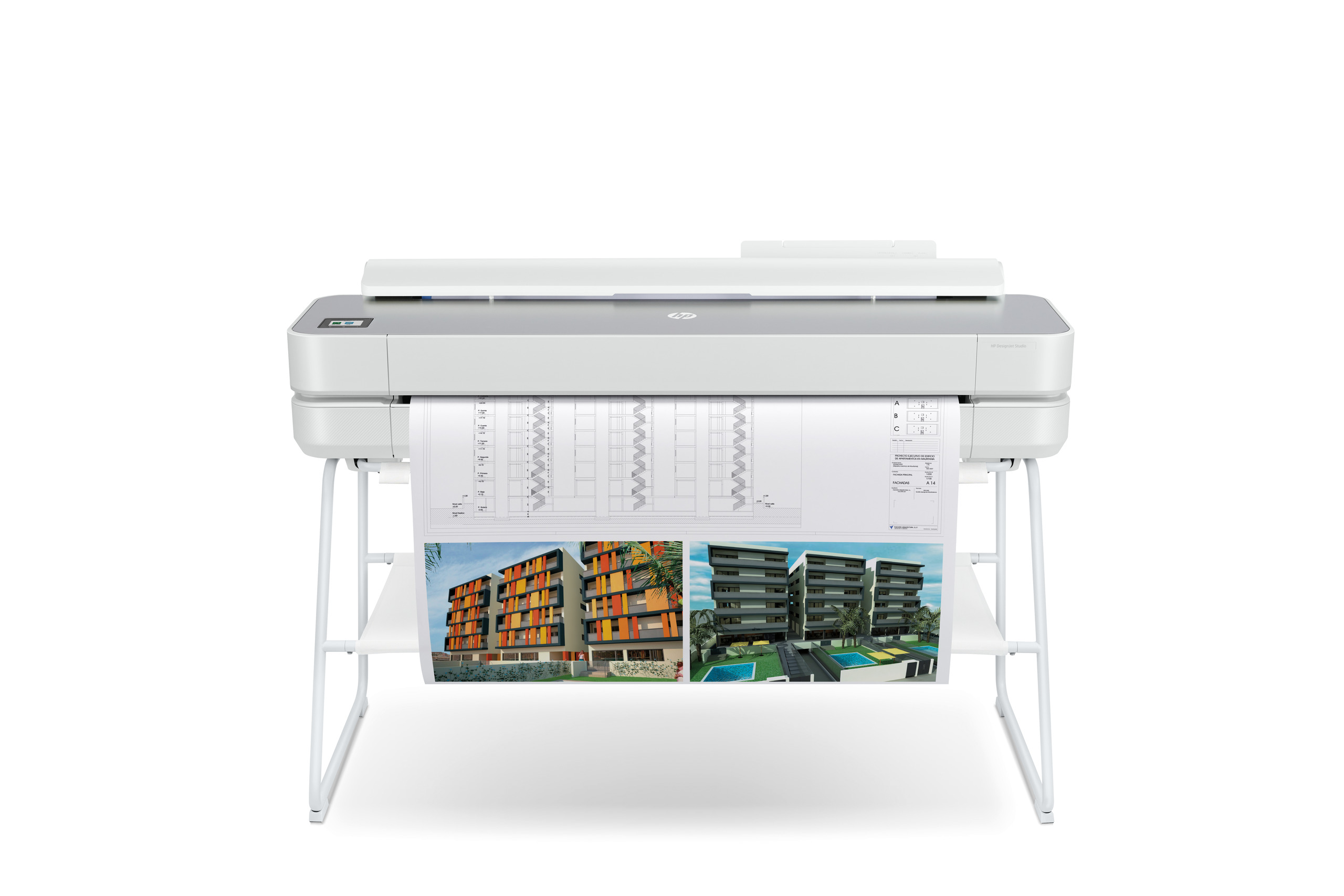

HP DesignJet Studio Steel 36"

Overview

The HP DesignJet Studio Steel is ideal for design sensitive architecture studios and engineers, preferring a smaller footprint, focused on executing, problem-solving, and multitasking, and need convenient large format and small format printing of technical documents to enable effective communication.

Fits the way you live

Design that performs, technology that stands out. Easily set up your plotter using your smartphone. First net carbon neutral HP DesignJet plotter.

Extreme simplicity

Print multi-size A3 and A0 projects automatically, without manually switching the media source. Save time with the world's easiest job submission, send multiple files in one click with HP Click. Print with confidence you'll get the results you expect with an intuitive driver and true print preview.

Fits the way you work

Above all, avoid waiting by the printer with high-speed printing as fast as 25 seconds per A1 plot. Be more productive—save time from job prep to final print by printing your projects up to 2X faster. Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app. Get high-quality results—HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut.

Unique Differentiator (Why to Buy)

Why to Buy: Firstly, this innovative large format plotter with a design that meets performance makes it easy to achieve accurate lines and sharp details in your CAD drawings, and presentations at resolutions up to 2400 dpi. Secondly, with convenient features, mobile printing and an aesthetic design, the Wi-Fi connected HP DesignJet Studio Steel Printer fits the way you work. Lastly, it also fits your work space with the most compact design on a large-format plotter. A technology that stands out in the first net carbon neutral HP DesignJet plotter.   You may also be interested in getting the smaller option which you can find here HP DesignJet Studio Steel 24".

HP DesignJet Studio Steel 36″

MEMORY

Memory

1 GB

BOX CONTENTS

What’s in the box

HP DesignJet Studio Steel 36-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

CONNECTIVITY AND COMMUNICATIONS

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Print multi-size files in one click

Yes

Remote print enabled

Yes

WEIGHTS

Weight

41.7 kg

Package weight

62 kg

DIMENSIONS

Minimum dimensions (W x D x H)

1317 x 555 x 932 mm

Package dimensions (W x D x H)

1470 x 575 x 646 mm

BATTERY AND POWER

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

Power consumption

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

SOFTWARE AND APPLICATIONS

Software included

HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

WARRANTY

Manufacturer Warranty

Two-year limited hardware warranty.

CARTRIDGES AND PRINTHEADS

Number of print cartridges

4 (C, M, Y, K)

Ink types

Dye-based (C, M, Y)
pigment-based (K)

Colour(s) of printing supplies

Cyan, magenta, yellow, black

Ink drop

5.5 pl (C, M, Y)
12 pl (K)

Print cartridge volume delivered

80 ml (K)
38 ml (K)
29 ml (C, M, Y)

Print head nozzles

1376

Print heads

1 (cyan, magenta, yellow, black)

High capacity of page yield (colour)

20 ml of ink yields 101 A1 pages, taking into account maintenance routines

PRINTER SPECIFICATIONS

Functions

Print

Internal Storage

None

Print technology

HP Thermal Inkjet

Print languages

HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Printer drivers included

Raster driver for Windows and macOS

Printing path

Print Anywhere with HP Smart app, HP Click, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint

Line accuracy

±0.1%[3]

Theoretical minimum line width

0.02 mm

Model size

914 mm

PRINT SPEED

Print speed

25 sec/page on A1, 82 A1 prints per hour[1]

PRINTING MEDIA HANDLING

Finished output handling

Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

PRINT AREA

Non-printable area (cut-sheet)

5 x 5 x 5 x 5 mm

Non-printable area (roll media)

5 x 5 x 5 x 5 mm

PRINT RESOLUTION

Print quality colour (best)

Up to 2400 x 1200 optimised dpi

Maximum optical density (black)

8 L* min/2.10 D[4]

PRINTING MEDIA

Media sizes standard (metric rolls)

279 to 914 mm

Roll external diameter

100 mm

Roll maximum input

1

Roll maximum weight

6.2 kg

Media thickness

Up to 11.8 mil

Supported Primary Applications

Line drawings
Presentations
Renderings

Recommended media

Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m

SUPPORTED PRINTING MEDIA

Media sizes supported

Auto sheet feeder: A4, A3
manual feed: A4, A3, A2, A1, A0

Media sizes, custom

Auto sheet feeder: 210 x 279 to 330 x 482 mm
manual feed: 210 x 279 to 914 x 1897 mm

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media weight, recommended

60 to 280 g/m² (roll/manual feed)
60 to 220 g/m² (auto sheet feeder)

Media width, maximum

914 mm

Media thickness (metric)

Up to 0.3 mm

Name HP DesignJet Studio Steel Large Format up to A0 Plotter Printer - 36", with Mobile Printing
SKU 5HB14C
Specification No
Manufacturer HP
EAN 194850629150
